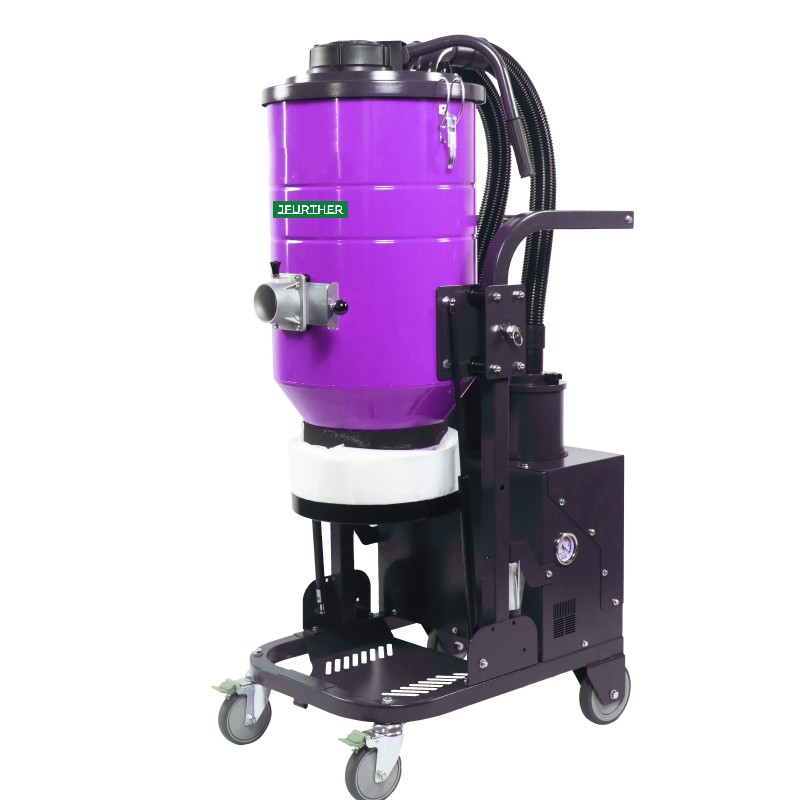

JF82 single phase dust extractor with continuous bagging for concrete floor grinder — purple JFURTHER unit

Industrial Vacuum Cleaner for Floor Grinder — JF82 & JF83 Dust Extractors

Industrial vacuum cleaner for floor grinders: JF82 (2.4 kW, 410 m³/h) and JF83 (3.6 kW, 620 m³/h), H13 filtration at 0.3 μm, manual reverse-air cleaning and continuous bagging.

Category: Industrieller Staubsauger

Key Facts

Models: JF82 & JF83 — manual reverse-air (blowback) filter cleaning, continuous bagging.
JF82: 2.4 kW (2 motors), max. airflow 410 m³/h, max. vacuum 220 mbar.
JF83: 3.6 kW (3 motors), max. airflow 620 m³/h, max. vacuum 220 mbar.
Filtration: two-stage PTFE membrane-coated cartridges, H13 at 0.3 μm, filter area 3.5 m² (JF82) / 3.5 m² (JF83).
Dust disposal: continuous bagging — pull down, cut and seal the bag without opening the tank.
Power supply: single-phase 220 V, 50 Hz; other voltages available on request.

Get a quote for the JF82 or JF83 Single Phase Dust Extractor. Tell us your grinder model, voltage and country, and we will confirm the configuration and export packing within one business day. Please use the inquiry form on this page and include: (1) grinder brand and disc size, (2) voltage and plug standard, (3) quantity, (4) destination port, (5) manual or automatic cleaning preference.

Get a Quote

The JF82 and JF83 are the manual-cleaning, single-phase dust extractors JFURTHER builds for concrete floor grinders. Both use reverse-air blowback cleaning, H13 filtration at 0.3 μm and continuous bagging; they differ in power and airflow. The JF82 (2.4 kW, 410 m³/h) suits small and mid-size grinders; the JF83 (3.6 kW, 620 m³/h) suits large multi-head grinders and heavier dust.

A continuous bagging system handles disposal. Concrete and silica dust falls into one long transparent bag; you pull it down, cut it at any length and seal it, so the operator never tips an open drum of fine dust. An hour meter, forklift-friendly base and a height-compressible frame (approx. 1,155 mm packed height) keep fleet management and export shipping simple.

Choose the JF82 if…

You run a small or mid-size floor grinder, or you grind intermittently and want a lighter, simpler extractor. Two independently switched motors give you 410 m³/h when you need it and one-motor running for light clean-up.

Choose the JF83 if…

You run a large multi-head grinder or produce a lot of dust. Three independently switched motors deliver 620 m³/h, so you can match suction to the job and keep working on two motors if one is being serviced.

Shared H13 filtration

Both models use two-stage membrane-coated cartridges that filter dust down to 0.3 μm at H13 level, protecting operators during dry concrete grinding where respirable dust is the main hazard.

Manual reverse-air cleaning, done safely

When suction drops, switch the extractor off, close the inlet, and use the reverse-air blowback to pulse air back through the cartridge. The dust falls into the collection bag below. You do not open the filter housing and you do not shake the cartridge by hand.

Continuous bagging disposal

One long bag replaces fixed drums: pull, cut, seal, dispose. Faster changeovers and far less airborne dust during emptying.

Built to ship and to move

Both frames compress in height to cut freight volume, and the bases can be lifted directly by forklift. Fitted castors handle day-to-day movement on site.

Spezifikation	JF82	JF83
Power supply	Single-phase 220 V, 50 Hz (other voltages customizable)	Single-phase 220 V, 50 Hz (other voltages customizable)
Strom	2.4 kW (2 motors)	3.6 kW (3 motors)
Max. vacuum	220 mbar	220 mbar
Max. airflow	410 m³/h	620 m³/h
Filter cleaning	Manual reverse-air blowback	Manual reverse-air blowback
Filter type	Two-stage high-efficiency membrane-coated cartridge	Two-stage high-efficiency membrane-coated cartridge
Filterfläche	3.5 m²	3.5 m²
Filtration performance	H13 (0.3 μm)	H13 (0.3 μm)
Dust collection	Continuous bagging	Continuous bagging
Lärm	72±2 dBA	74±2 dBA
Dimensions (W×D×H)	800×530×1470 mm (compressed height approx. 1155 mm)	980×530×1470 mm (compressed height approx. 1147 mm)
Zubehör	D50 standard kit	D50 standard kit
Gewicht	Approx. 80 kg	Approx. 100 kg

Confirm which model fits my grinder.

Industrial Vacuum Cleaner Video

Anwendungen

Dry concrete grinding and floor preparation, from small and mid-size grinders (JF82) to large multi-head grinders (JF83)
Epoxy removal, surface preparation and general floor clean-up
Workshops and rental fleets that need single-phase, plug-and-work extraction

Not the right fit if: you need automatic filter cleaning for continuous full-shift grinding — choose the JF84 automatic cleaning version (410 m³/h) or the JF85 (620 m³/h, automatic).

Häufig gestellte Fragen

Is the JF82 or JF83 suitable for my grinder?

The JF82 suits small and mid-size concrete floor grinders; the JF83 suits large multi-head grinders. Send us your grinder model and disc size in the inquiry form and we will confirm the match before you order.

Which model should I choose, JF82 or JF83?

Choose the JF82 for small and mid-size grinders and lighter, intermittent work (2.4 kW, 410 m³/h). Choose the JF83 for large multi-head grinders and heavier dust (3.6 kW, 620 m³/h). Both use the same manual reverse-air cleaning, H13 filtration and continuous bagging.

What is the difference between JF82 and JF84?

Both deliver 410 m³/h at 2.4 kW with H13 filtration at 0.3 μm and continuous bagging. The JF82 uses manual reverse-air cleaning (you clean the filter when suction drops); the JF84 cleans automatically on a cycle, so it suits longer continuous grinding.

Can it run on a different voltage?

The standard supply is single-phase 220 V, 50 Hz. Other voltages and plug standards are available on request. State the voltage and plug standard in your inquiry and we will confirm the configuration.

How is dust emptied?

Through the continuous bag — the same answer as the other models: pull the bag down, cut and seal it. The dust stays enclosed, which reduces exposure during disposal.

What accessories are included?

Standard D50 accessory kit included: D50 x 7.5 m wear-resistant hose, aluminium S-wand, crevice tool and floor brush. An optional front suction bar (approx. 70 cm) speeds up final floor cleaning after grinding.

Not sure which model? Send your grinder model — we reply with a recommendation, not just a price.

Get a Quote
