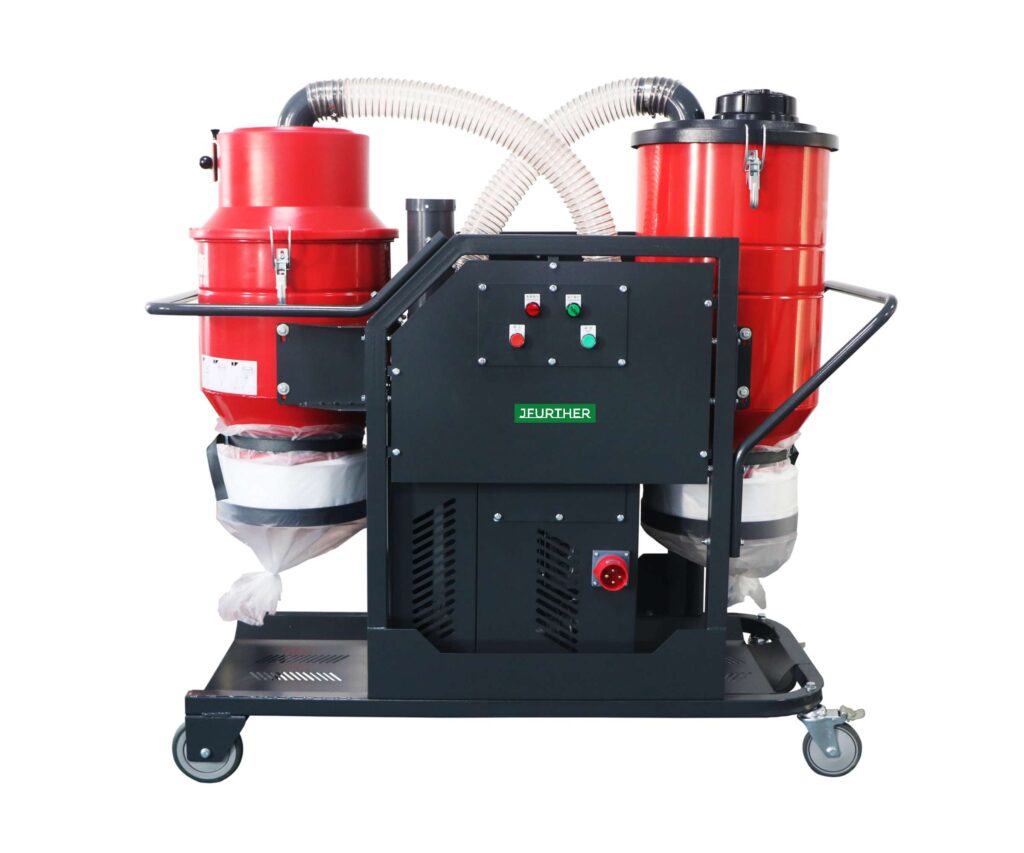

Three-phase bagged industrial vacuum cleaner
Two-stage filtration, the front cyclone separator can filter >98% dust. Standard with imported polyester fiber coated filter barrel,
+ pulse blow back cleaning system. Suitable for continuous work, dust particle size is small, dust is large working conditions;
especially suitable for floor grinding, shot blasting and other working conditions.
| Weight | 50 kg |
|---|---|
| Dimensions | 54 × 92 × 85 cm |
- The distribution box is equipped with a full set of Schneider electrical components, with overload and short-circuit protection.
- The barrel body adopts electrostatic spraying, which is beautiful and corrosion-resistant; the lower material adopts bagging mode, which is convenient to collect.
- It is not easy to produce secondary dust; to avoid dust hazards to human health.
- Filtration class H, filtration accuracy of 0.3um, 99.5% effective filtration.
- Equipped with a negative pressure gauge, which can monitor the clogging condition of the filter in real time.
- Equipped with noise reduction device to effectively reduce motor noise.
- JFS70,80 is equipped with pulse dust cleaning device, which can clean dust automatically.
Technical Parameters
| Type | JFS70 | JFS80 |
| Voltage | three-phase 380V 50Hz | three-phase 480V 60Hz |
| Power (kw) | 7.5kw | 8.6kw |
| Maximum negative
pressure (mbar) |
320 | 350 |
| Maximum air
volume (m3/h) |
530 | 620 |
| three-phase | Imported polyester fiber PTFE coated filter barrels | Imported polyester fiber PTFE coated filter barrels |
| Filter area | 35000 | 35000 |
| Filter Precision | 0.3um>99.5% | 0.3um>99.5% |
| Filter cleaning method | blowback cleaning | blowback cleaning |
| Noise (dbA) | 78±2 | 78±2 |
| Size(mm) | 640*1230*1600 | 640*1230*1600 |
| Weight(Kg) | 200 | 200 |
