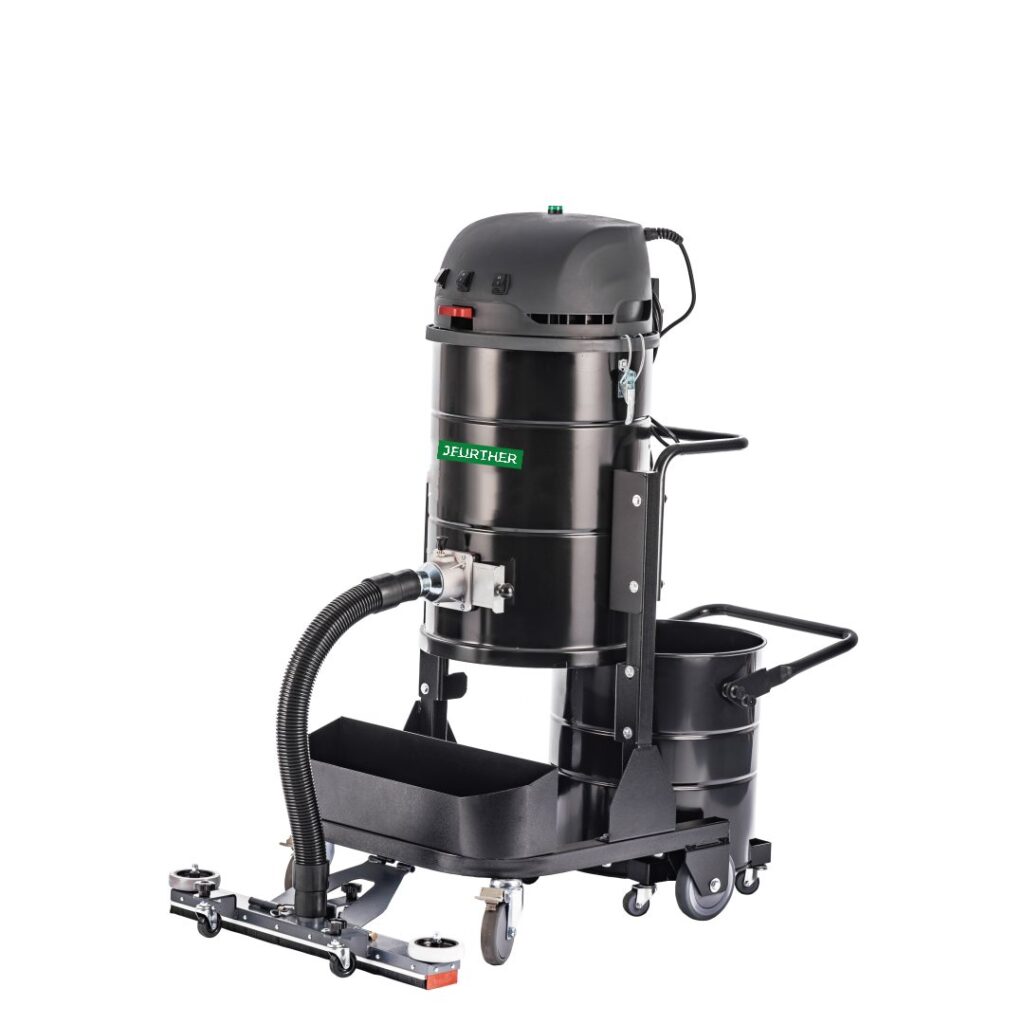

JS9 series Single Phase Industrial Vacuum Cleaner

High-end industrial vacuum cleaners with a wide range of filters and dust shaking options to quickly fulfill the needs of intense and demanding work even under the most severe conditions for a wide range of complex work conditions in industry and commerce.

Model	JS902	JS903
Power Source（V/Hz）	Single Phase 220V, 50/60 Hz
Motor Power（KW）	3.6kw
Max. Negative Pressure（mBar)	200	200
Maximum Air Volume（m3/h）	620	620
Dust Vibrating Method	Blowback Vibration Dust	Electric Vibration Dust + Blowback Vibration Dust
Filter Type	Imported Polyester Fiber PTFE Coated Filter Barrel
Filter Area（m2）	30000
Filtration Performance	0.3um, min≥99.5%
Dust Bucket Capacity（L）	65L
Noise（dBA）	78±2	78±2
Size（cm）	610x670x1325
Weight（kg）	50

3 industrial-grade all-copper dust and water suction motors, can be independently controlled switch upper and lower barrel split structure, dumping garbage convenient and labor-saving. Electrostatic spraying barrel, beautiful and corrosion-resistant imported polyester fiber coated filter barrel, small pressure loss, high filtration precision.

Product Introduction

S3 series Cleaner is an industrial vacuum cleaner characterized by single-phase 220V power supply, 3-motor large suction, upper and lower barrel separation structure, and high-efficiency filter cartridge filtration, back-blowing dust removal as the design concept. It is mainly used in the fields of Industrial Manufacturing Workshop Floor Cleaning, Machine Tool Equipment Cleaning, New Energy Workshop Cleaning, Automation Workshop Cleaning and other fields.

Features

Driving Fan

S3 series is equipped with high-quality motor fans, high efficiency, large air volume, and high negative pressure. Each device is configured with 3 units, which fully meets the requirement of the site for vacuum cleaning efficiency. Humanized design of 3 independent switches, independent control of 3 motors, to satisfy different suction and air volume.

Three motors are built inside the machine cap. The machine cap is made of plastic molding material to reduce the weight of the whole machine, and the mold is integrally formed, which is beautiful and durable.

2.Efficient Purification

S3 series cleaner is equipped with a PTFE-coated filter cartridge filter, which has a filtration efficiency of more than 99% for dust with a precision of 0.3 μm, making the dust-laden gas inhaled by the equipment more clean.

3. Refuse to Block, Effectively Vibrate Dust

After the industrial vacuum cleaner has been working for a period of time, a certain amount of dust will adhere to the surface of the filter, and when it accumulates to a certain extent, the filter will be blocked. Equipment design dust vibration structure: electric dust vibration and back blowing dust cleaning. These two structures effectively clean the dust attached to the surface of the filter cartridge, allowing the dust to escape from the surface of the filter cartridge, ensuring effective ventilation of the filter and continuous efficiency increase of the dust removal equipment.

4.Upper and Lower Bucket Separation Structure

The upper and lower bucket separation structure is designed, and the filter chamber and the dust collection bucket are isolated from top to bottom, which is helpful for dust settlement and cleaning and disposal of dust waste in the dust collection bucket.

The dust collection bucket is equipped with universal casters and a push-pull rod, which makes it more convenient for us to clean the dust waste.

5. Mobile Equipment, Less Effort

The movement of the equipment uses the combination of universal brake wheels and directional wheels to make the steering more flexible and the walking easier and more stable.
