mobile industrial dust collector

Dust poses serious health risks, especially when generated by manual tools used for grinding, polishing, and cutting, as it can easily be inhaled within 1 meter of the operator’s respiratory system. Manual tools often require vacuums that are lightweight, user-friendly, and smart. The JF62 is a cutting-edge, cleverly engineered, lightweight, fully automated vacuum cleaner specifically designed to handle dust from manual tools. It offers exceptional convenience, highly efficient filtration, and an automatic filter cleaning feature for optimal performance.

Technical parameters:

Rated voltage/frequency	220~240V 50/60Hz	Container volume	42L
Rated power	1200W	Power cable length	5M
Maximum load on external socket	600W	Product size	About 597x388x588mm
Maximum airflow	34L/M	Package size	About 615x415x655mm
Maximum vacuum	18KPa	Net weight	About 16kg
Protection level	IP24	Gorss weight(include package)	About 18.5kg
الضوضاء	80±2dB(A)	Package	Carton packaging (not recycled)

Flexible and Lightweight – Dust-Free Operation

Transform your work environment with the JF42, your mobile industrial dust extractor!

Ideal for Vacuuming with Sanding Tools:

Polishing Triplexers
Multi-purpose Machines
Electric Circular Grinder
Electric Square Grinder
Pneumatic Circular Grinder
Pneumatic Square Grinder
Sheet Metal Grinders, and more.
Mobile Dust Extraction System

Mobile Dust Extraction System for Cutting Tools:

Curve Saw
Orbital Circular Saw
Orbital Li-Ion Saw
Table Saw, and others.

Versatile Vacuuming Applications:

Woodworking (Mortise and Tenon)
Slotting Machines
Drilling Machines
Cleaning and Sweeping Tasks

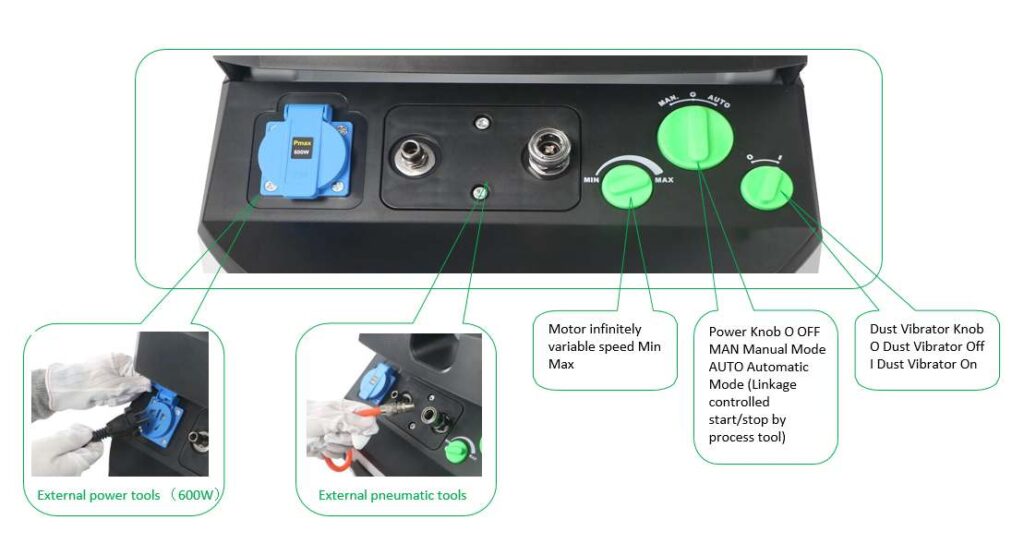

Intelligent control panel

Standard Features:

External socket (600W) module and pneumatic module, no optional modules required.
In AUTO mode, the vacuum cleaner and tools are linked together. There’s no need to manually control the vacuum cleaner’s start and stop; it automatically follows the tool’s operation, enhancing both intelligence and energy efficiency.
Dust Vibration Knob: In I gear, the vacuum cleaner automatically activates dust vibration when the filter becomes clogged, ensuring self-cleaning for continuous performance.

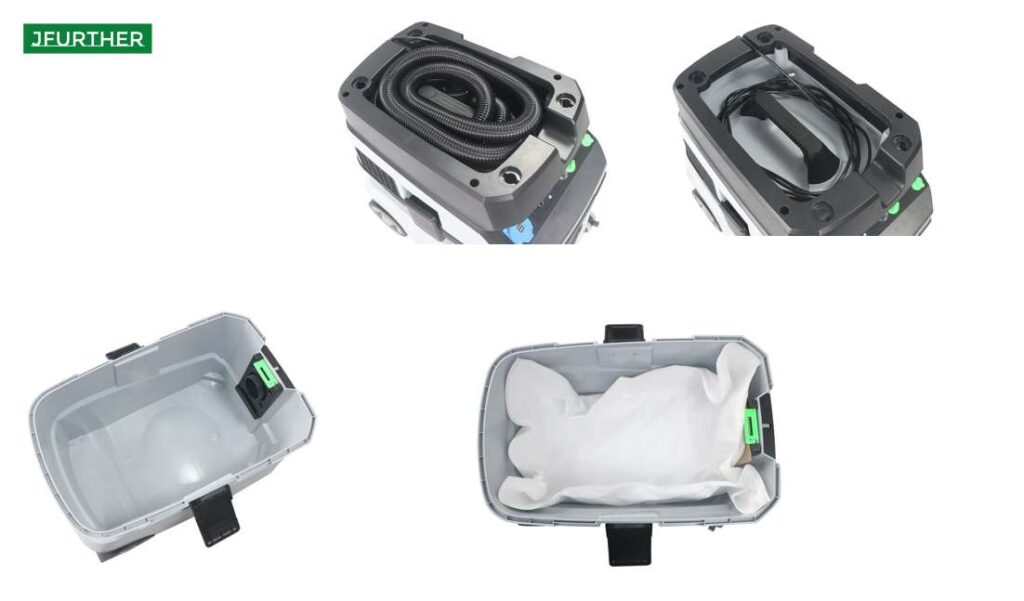

The 42L large capacity features a primary filtration system with a spacious dust collection bag, making it easier to stretch and handle.

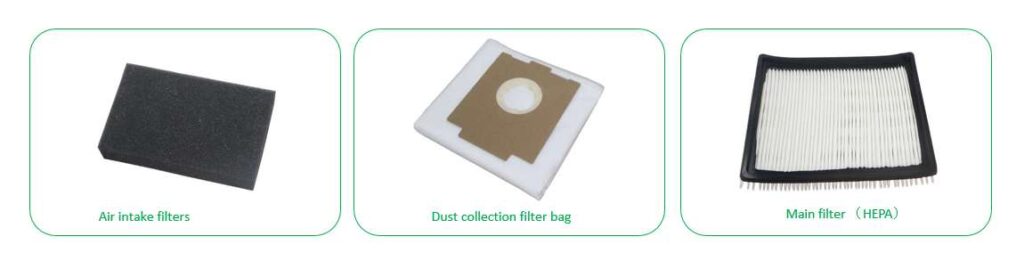

The following consumables should be regularly maintained and replaced on time (to be purchased separately by the owner):
